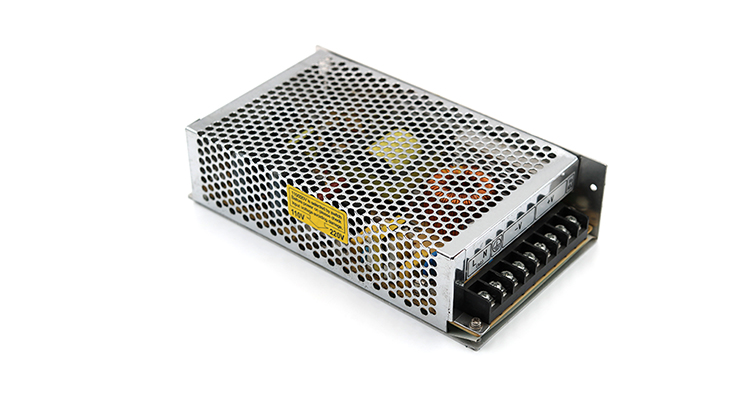

Model：

GA-12010T

Power:

120W max.

Input：

110/230VAC   50/60Hz

Output Voltage:

5-48V

Output Current:

0.01-20A

Input current:

2.0A max.

Inrush Current:

Cold start 45A.   at 240VAC/50Hz,full load

Leakage Current:

2mA max. at   240VAC input

Protections：

Short Circuit   /Over Current /Over Voltage

Short Circuit   Protection (SCP)：

Protection to   Zero Voltage

Over Voltage Protection   (OVP):

≤Vout*150%

Over Current   Protection (OCP):

110%-180%

Working TEMP.:

-20°C-60°C

Working Humidity：

20%-90% RH   non-condensing

Storage   TEMP.,Humidity and altitude:

-40℃ ~+70°C ambient temperature and a 5% to 95% relative   humidity range throughout an altitude range of -60 meters to +5000 meters   AMSL.

Certificates and   approvals:

CE,EMC,FCC,CCC,RoHS,REACH

EMI EMISSION:

Radiation   Test&Conduction Test: EN 55022/FCC Part 15
  Harmonic Test : EN 61000-3-2
  Flicker Test : EN 61000-3-3

SAFETY   STANDARDS:

EN   60950-1:2006+A11:2009+A1:2010+A12:2011

MTBF:

100000 hours   minimum at full load at 25℃ ambient

Life:

3-5 years   alternative

Dimension:

160*98*42mm   (L*W*H)

Weight:

410g

Packing:

34.5*29.5*22.5CM/20PCS
